VELA TONDO Remote controls

VELA TONDO

DESIGN AND FUNCTIONALITY FOR ALL APPLICATIONS

VELA TONDO is the multi-function remote control suitable to control up to 30 devices, one by one or in groups.

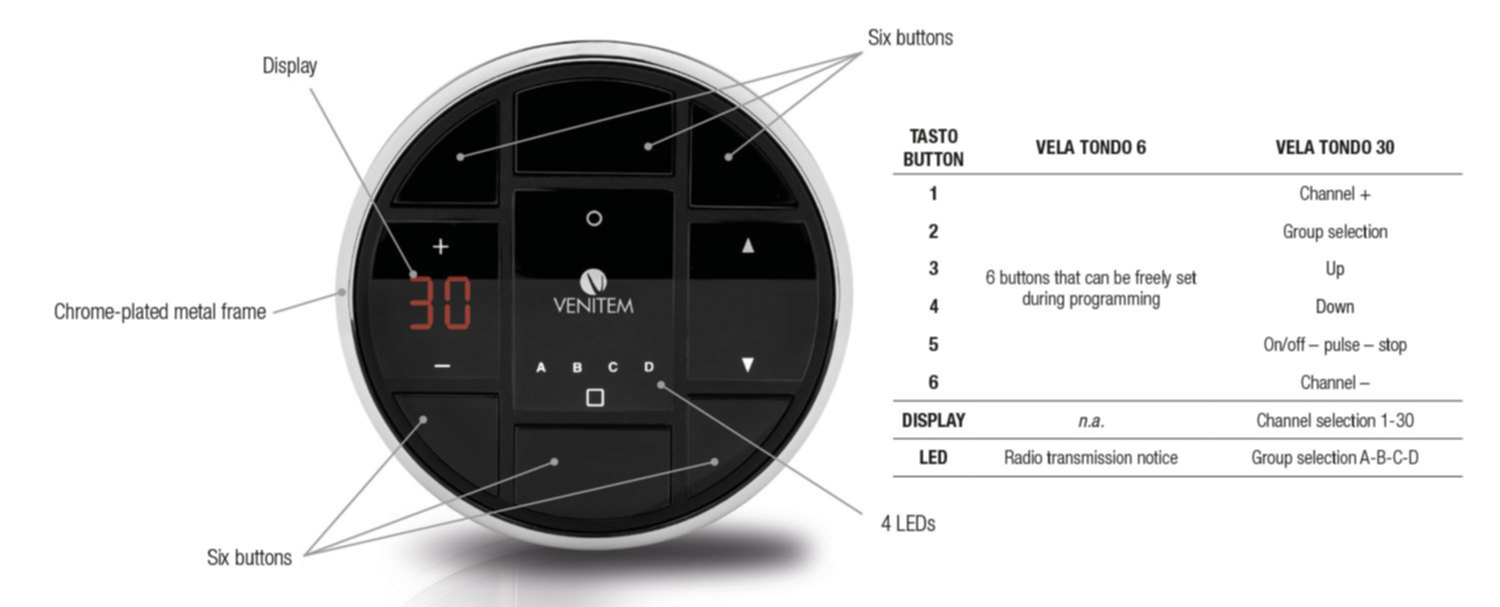

The remote control is available in 2 variants to ensure maximum application versatility. Buttons can be either pre-programmed or freely selectable to be set and associated to the receiver during programming. VELA TONDO 30 features a 7-segment display while both models have 4 LEDs devoted to group selection and radio transmission respectively. The available models also feature different serigraphic prints visible on the front part.

_

AVAILABLE VERSIONS

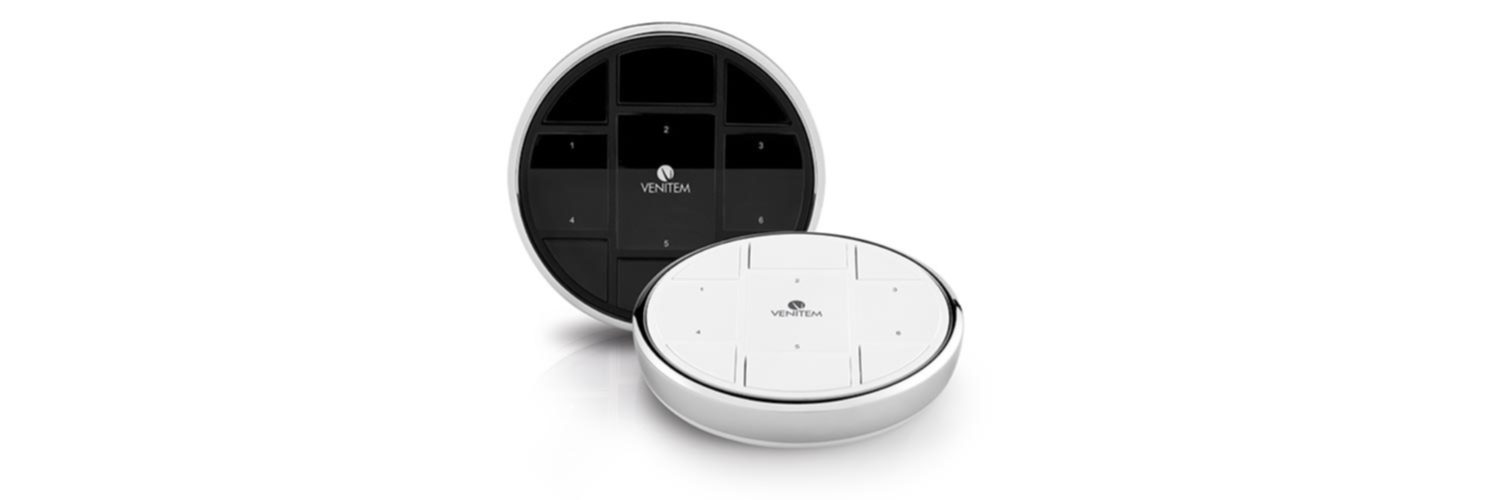

VELA TONDO 6

433.92MHz rolling-code remote control featuring 6 freely programmable channels.

Each button is associated to the desired function during programming.

COLOURS: White and Black

_

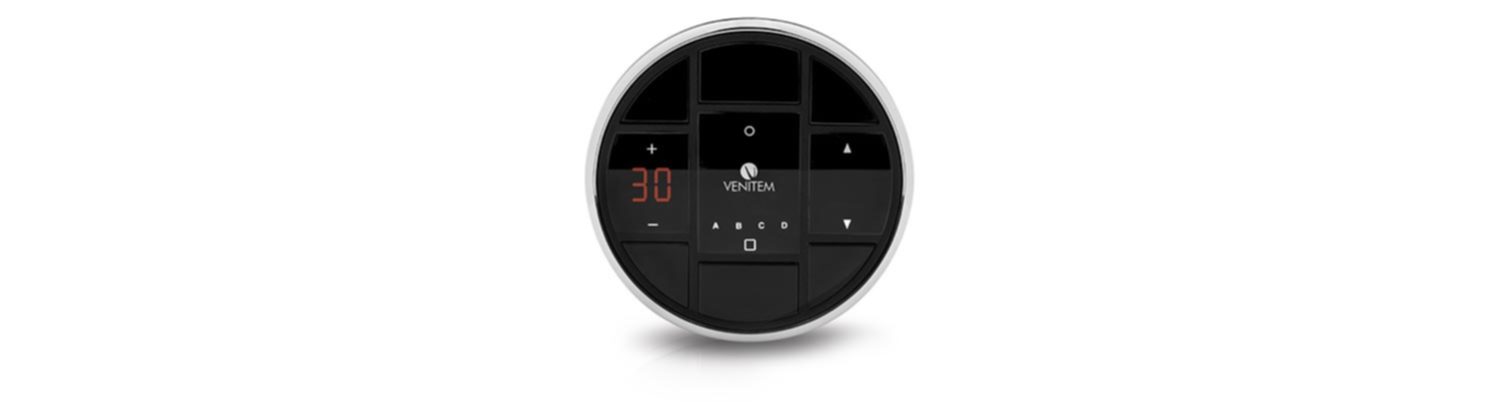

VELA TONDO 30

433.92MHz rolling-code remote control featuring 30 channels and 4 groups.

Up-down-stop and pulse function, buttons are pre-set from factory.

COLOUR: Black

VELA TX 220V-3V – CONVERTING HARDWIRED BUTTONS INTO RADIO CONTROLS

VELA TX 220V-3V is the remote control for flush mounting featuring 4 channels (buttons or switches) and suitable to convert hardwired buttons into radio controls. The innovative double supply possibility, from mains or using a battery, enables a wide variety of installations, both in new systems and in already existing positions. The ISM frequency band (Industrial, scientific, medical application) ensures range coverage even through walls and slabs. The device features simplified setting via DIP switches and small size with lugs for screw-fixing or breaking to mount the device in 55-mm diameter electrical boxes.

_

VELA REPEATER – ENHANCING RADIO TRANSMISSION RANGE

VELA REPEATER is the radio repeater able to increase radio signal range and, therefore, useful to control devices located far away or on a different level with respect to the controlling device. The innovative software of VELA range avoids the risk of receiving “double commands” in case the device receives both the control tool of the remote control and the one sent by the repeater. The ISM frequency band (Industrial, scientific, medical application) ensures range coverage even through walls and slabs. The device features simplified setting via DIP switches and small size with lugs for screw-fixing or breaking to mount the device in 55-mm diameter electrical boxes.
